2.0L TFSI EA113 V3 upgrade Turbocharger K04 to 480 HP Turbo-Total®

Product number: 21tf173

Turbo-Total® Turbocharger

Engine power up to 480 hp!
balanced to the smallest tolerances
Plug & Play
100% Boost!

€3,024.96

Prices incl. VAT plus shipping costs

Delivery time 1-3 days

Ask a question about this product

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Quick Links

Authoried Dealer

Description

Description

Next upgrade-level to 480 HP with our V3 K04 upgrade turbocharger from Turbo-Total® for 2.0L TFSI engines.

With our V3 upgrade turbocharger you can reach an engine power up to 480hp. Matching components such as exhaust system with Downpipe, high pressure pump, intercooler injectors and matching software tuning are necessary for 480 HP.

This is what our V3 upgrade turbocharger has to offer:

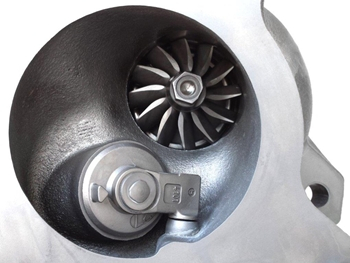

Large V3 compressor impeller with perfectly optimized geometry
Large V3 turbine wheel
Maximum enlarged intake to the compressor
Gap optimized (distance compressor to housing)
Reinforced 360° support for even more durability
Reinforced pressure can, thus no flutter and always a stable charge pressure
Turbocharger was balanced to the smallest tolerances
The turbocharger is a new part, no exchange or refurbished charger
Plug&Play suitable in 2.0L TFSI engines

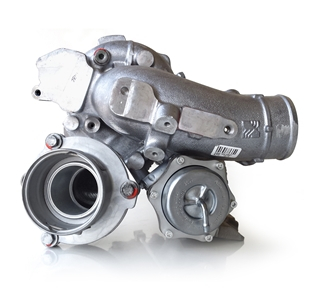

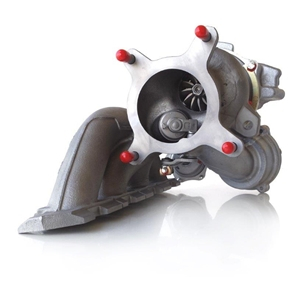

Supplied complete with manifold, pressure can and boost pressure control valve.

We recommend to renew at least the oil inlet line with!

Our V3 upgrade turbocharger is based on KKK K04 and is therefore Plug&Play to the TFSI typical downpipes, intake and pressure lines fit. Bartek has this turbocharger personally tested thoroughly. The conclusion of the turbo expert: Our V3 upgrade turbocharger can be moved even with more than 450 HP very well in everyday life and on the Nordschleife!

(No exchange necessary)
(Image similar)

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for

Fits for

Eos | I (Type 1F) | Year built 2006-2015 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)

Golf | V (Type 1K) | Year built 2003-2008 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BYD \| 230 hp (169 kW)
2.0 TFSI (EA113)	CDL \| 240 hp (177 kW)

Golf | VI (Type 5K1) | Year built 2008-2012 3 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLG \| 235 hp (173 kW)
2.0 TFSI (EA113)	CRZA \| 256 hp (188 kW)
2.0 TFSI (EA113)	CDLF \| 270 hp (199 kW)

Passat | B6 (Type 3C) | Year built 2005-2010 2 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)

Polo | V (Type 6R) | Year built 2009-2014 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLJ \| 220 hp (162 kW)

Scirocco | III (Type 13) | Year built 2008-2017 2 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)
2.0 TFSI (EA113)	CDLK \| 280 hp (206 kW)

Sharan | I (Type 7M8) | Year built 1995-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ADY \| 115 hp (85 kW)

Sharan | I (Type 7M9) | Year built 2000-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ATM \| 115 hp (85 kW)

A1 / S1 | 8X | Year built 2010-2018 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLH \| 256 hp (188 kW)

A3 / S3 / RS3 | 8P, 8PA | Year built 2003-2013 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BHZ \| 265 hp (195 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)

TT / TTS / TT RS | 8J | Year built 2006-2014 3 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLB \| 272 hp (200 kW)

Alhambra | I (Type 7M8) | Year built 1995-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ADY \| 115 hp (85 kW)

Alhambra | I (Type 7M9) | Year built 2000-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ATM \| 115 hp (85 kW)

Altea | I | Year built 2004-2015 0 Engines

Engine	Engine code

Leon | II (Type 1P) | Year built 2005-2012 8 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 185 hp (136 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLD \| 240 hp (177 kW)
2.0 TFSI (EA113)	BWJ \| 240 hp (177 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)
2.0 TFSI (EA113)	BWJ \| 286 hp (210 kW)
2.0 TFSI (EA113)	CDLA \| 310 hp (228 kW)
2.0 TFSI (EA113)	BWJ \| 310 hp (228 kW)
