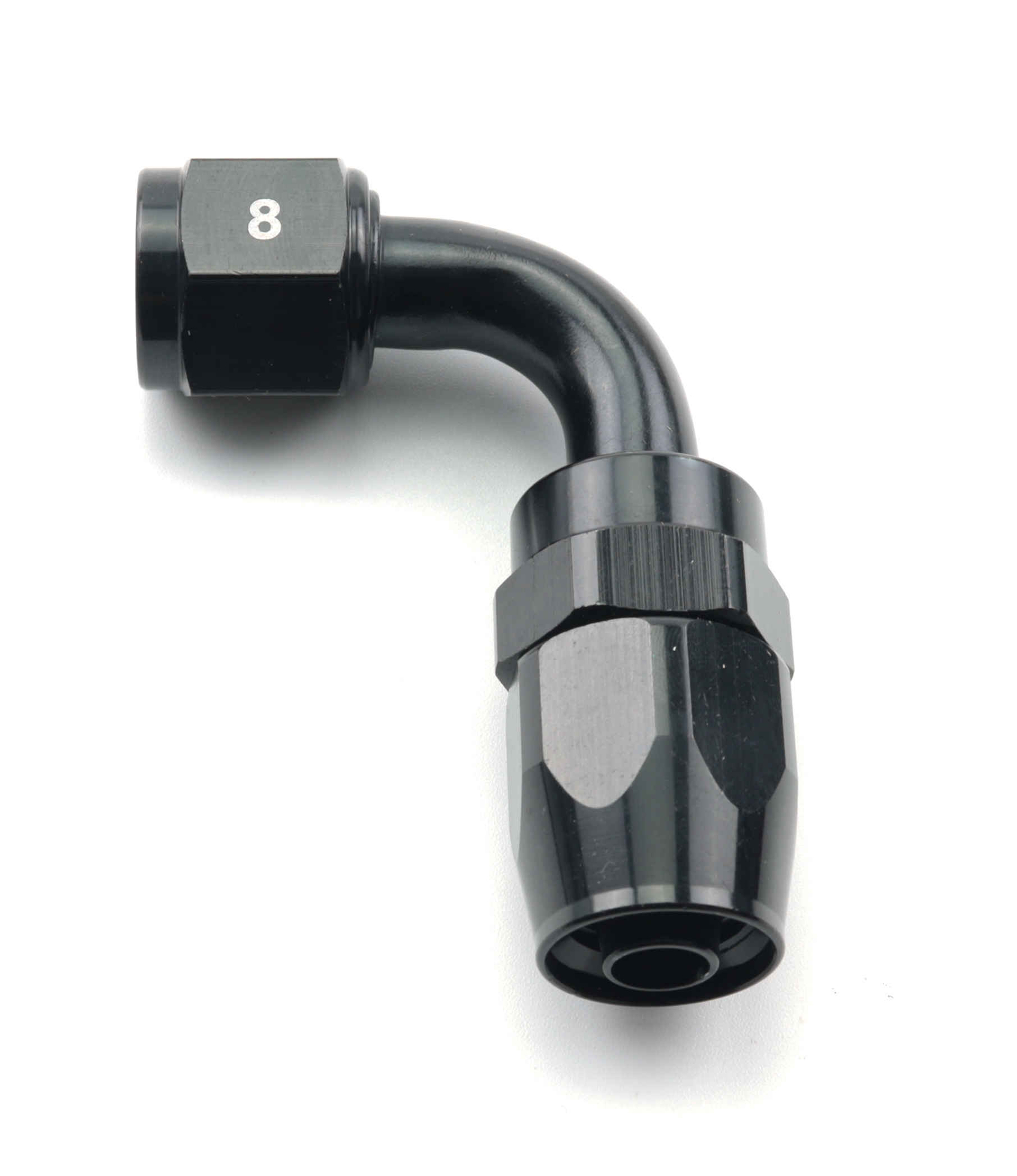

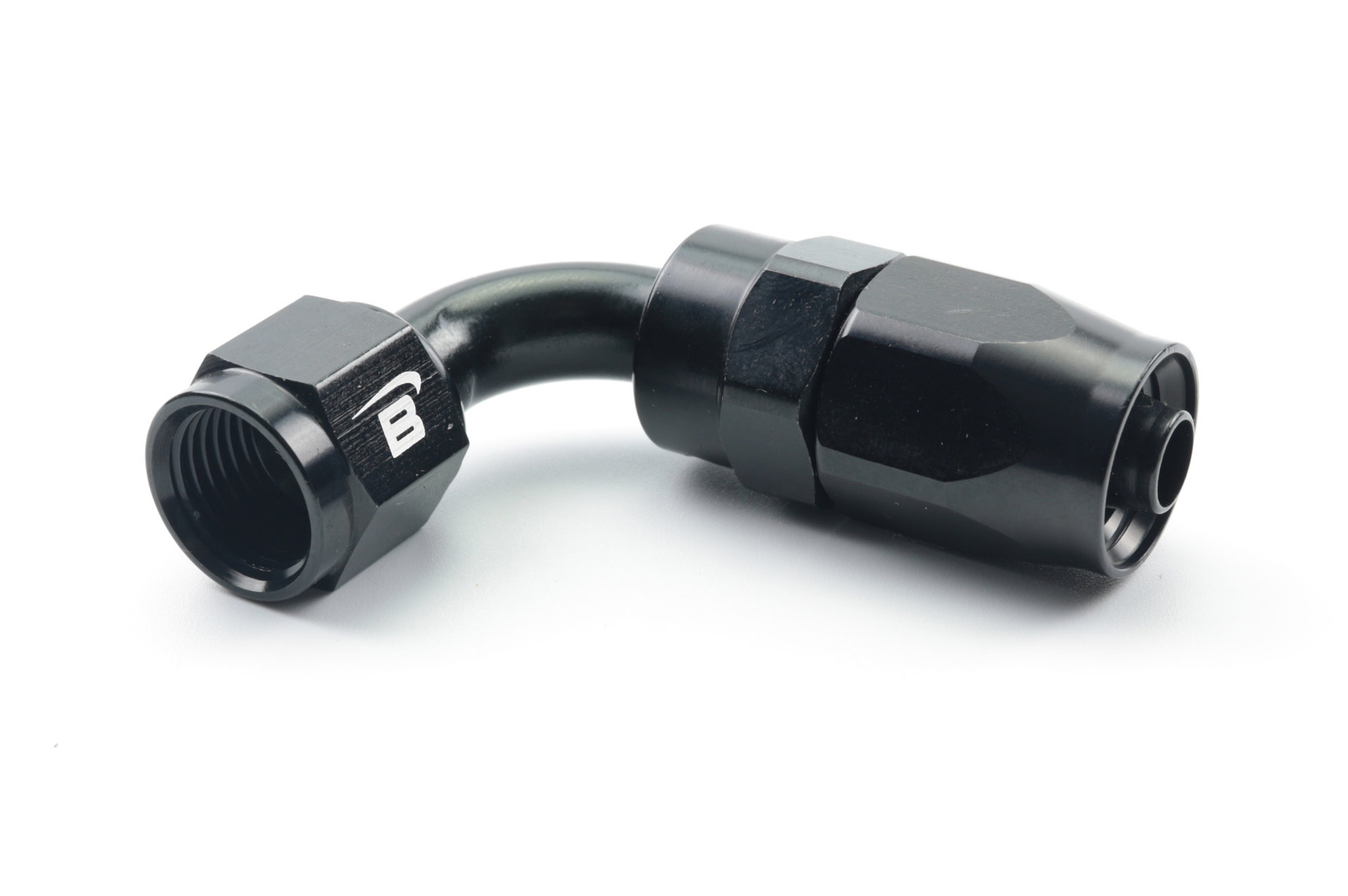

Aluminum fitting dash / AN BAR-TEK®

Product number: 2100335.10

Manufacturer: BAR-TEK®

Aluminum connection

universal
Fitting available in Dash 6 / 8 / 10 / 12
Aluminum black anodized
Our fittings are marked with the size

€13.60

Prices incl. VAT plus shipping costs

Ready to ship immediately!

Your selection

Dash - Size

Version

Ask a question about this product

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Quick Links

Made in Germany

Description

Aluminum fitting, universal for use, for example with our high-performance hose for the construction of Catchtank system and much more.

Fitting available in Dash 6 / 8 / 10 / 12
black anodized aluminum
our fitting are marked with their size, so you never need to search for the right size

The aluminum screw connection is unlimited reusable.

(Picture shows Catchtank as installation sample)

What dimensions do DASH connectors have?

In the following table we indicate the thread dimensions and the corresponding inner tube diameters. With the hoses small tolerances are possible. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter. For Catchtank a we recommend Dash 10

Dash (AN)
2
3
4
5
6
8
10
12
16
20
24
28
32

Thread (inch)
5/16x24
3/8x24
7/16x20
1/2x20
9/16x18
3/4x16
7/8x14
1-1/16x12
1-5/16
1-5/8x12
1-7/8x12
2-1/4x12
2-1/2x12

Outer Thread inch/mm
0,3125 / 7,94
0,3750 / 9,50
0,4375 / 11,11
0,5000 / 12,70
0,5625 / 14,29
0,7500 / 19,05
0,8750 / 22,22
1,0625 / 26,99
1,3125 / 33,34
1,3125 / 33,34
1,8750 / 47,63
2,5000 / 63,50
2,5000 / 63,50

Inner Thread inch/mm
0,2614 / 6,64
0,3299 / 8,38
0,3762 / 9,56
0,4387 / 11,14
0,4943 / 12,56
0,6733 / 17,10
0,7874 / 20,00
0,9603 / 24,39
1,2103 / 30,74
1,2103 / 30,74
1,7728 / 45,03
2,1489 / 54,58
2,3978 / 60,90

Hose inner Diameter
3,2mm
4,8mm
6,4mm
7,9mm
9,5mm
12,7mm
15,9mm
19,1mm
25,4mm
31,8mm
38,1mm
44,5mm
50,8mm
